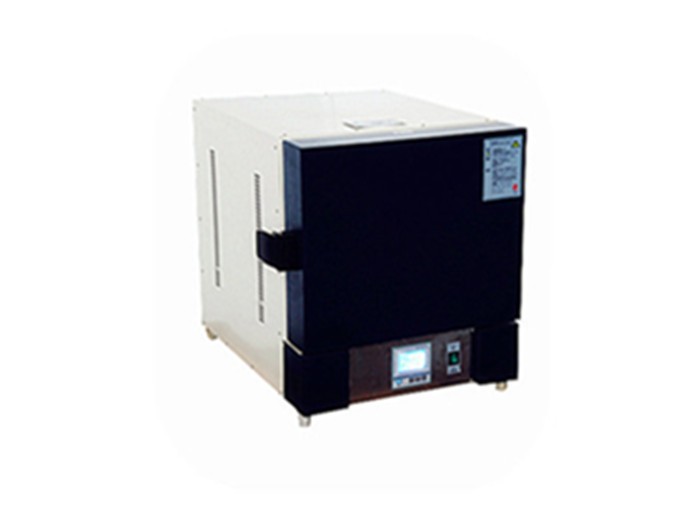

1000 ℃ integrated muffle furnace

Product Item : HZM01-HZM12
Category： Muffle furnace
INQUIRY EMAIL

usage overview

muffle furnace is an indispensable heating auxiliary equipment for dry pretreatment of samples in analytical laboratories, melting experiments in metallurgical laboratories, annealing and quenching experiments in heat treatment departments, and other occasions requiring high temperature. It is widely used.

integrated muffle furnace is a high-end product newly developed and produced by Huitai Company. The product integrates the furnace body and the control part optimally, greatly reducing the occupied space area.

product characteristics

l integrated design, large-screen LCD display, multiple groups of data display on one screen, beautiful and elegant, simple operation.

l intelligent PID high-precision temperature control realizes power loss-free.

l imported HRE ultra-high temperature alloy heating element has long service life, high efficiency and energy saving.

l has a fast heating rate, rising from room temperature to 1200 ℃ for less than 30 minutes.

l has less thermal pollution, adopts new ceramic fiber thermal insulation materials, adopts air thermal insulation structure for furnace body and shell, and the surface temperature rises lower. After heating to 1000 ℃ and keeping for 1 hour, the surface of the shell will not be hot (about 50 ℃).

l has precise temperature control and a variety of thermostats to choose from. After entering the holding state, the temperature fluctuation is small (temperature control accuracy is 1 ℃, temperature uniformity is 5 ℃). P-type multi-step thermostats are adopted, and the temperature rise and fall slope of each step can be preset.

	1.5-10T/TP	2.5-10T/TP	4-10T/TP	8-10T/TP	16-10T/TP
skill rate	1.5KW	2.5KW	4KW	8KW	16KW
temperature rise time	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<40min
temperature control accuracy	± 1 ℃
heating body type	resistance wire	resistance wire	resistance wire	resistance wire	resistance wire
furnace sizeW×D×H(mm)	120 × 200 × 80	200 × 300 × 120	200 × 300 × 200	300 × 400 × 300	400 × 500 × 400
nominal volume	1.9L	7.2L	12L	36L	80L
DimensionsW×D×H(mm)	430 × 605 × 550	510 × 705 × 590	530 × 715 × 690	700 × 860 × 860	800 × 960 × 960

Note: The performance parameter test is: ambient temperature under no-load condition, no strong magnetism and no vibration.20 ℃, ambient humidity50%RH.

Input power ≥2000W16Aplug. Other product configurations10Aplug.

Note:"T"means: ceramic fiber furnace,"P"means: Intelligent program resistance furnace can be customized for larger volume. (The customized product cycle is after order confirmation.3040business days).

Tags: integrated muffle furnace
