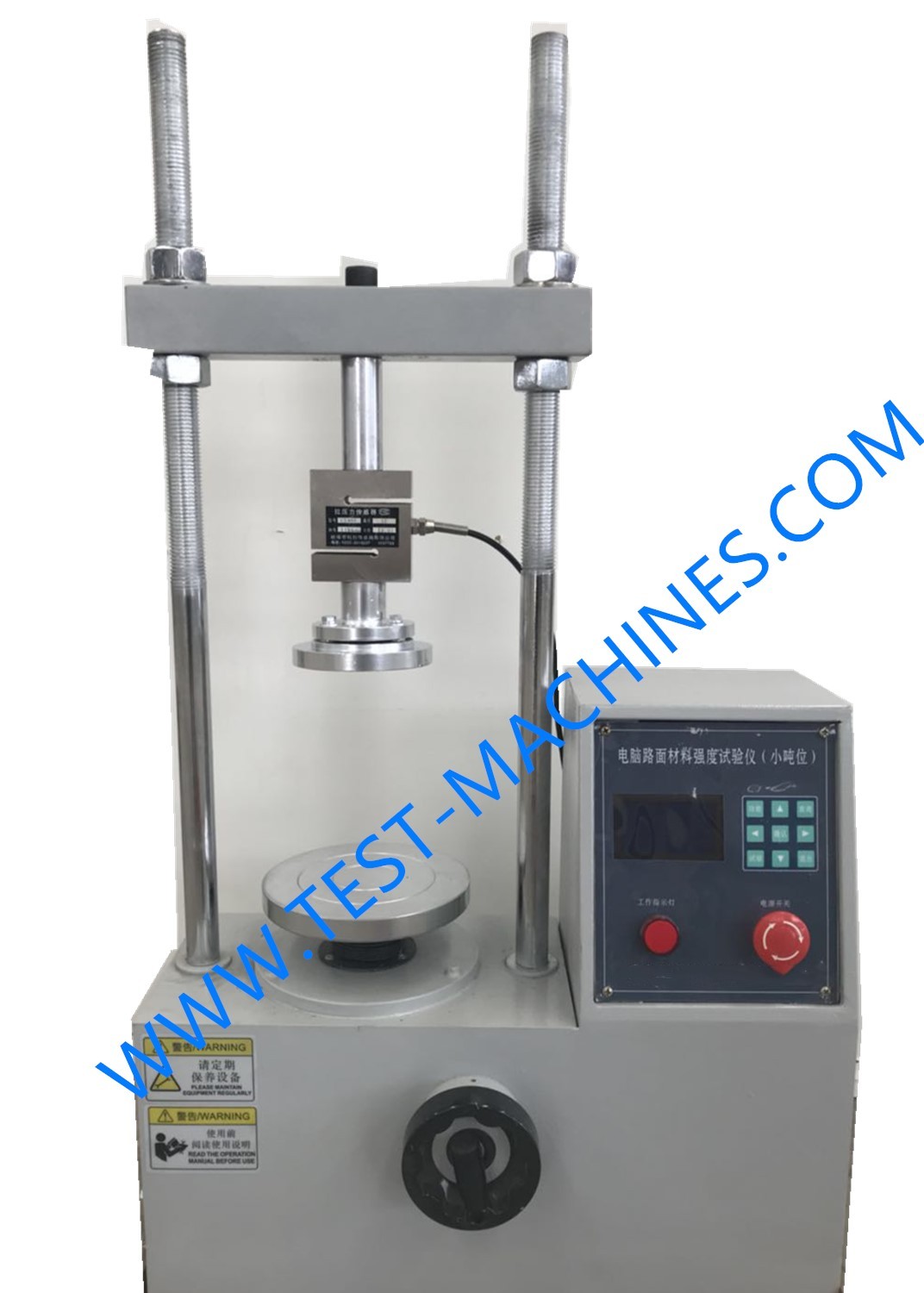

Road material strength test apparatus

Product name：Road material strength test apparatus

Item：HZC103-HZC104

Details：

Working with double motor, rising rate is accurate

:: LCD display, easy access to collected data, clear real-time pressure data, and accessible pressure curves

:: 20D models can be used for Luqiang, CBR, asphalt mixture Marshall stabilizer, anti-folding, compressive, splitting and other tests

* The 20D model uses a large LCD display, and the correction and correction of data can be easily solved

:: The instrument's mainframe is made of stainless steel countertops and is not concerned with breakage or falling debris

* All models can be equipped with printers(printers need client buy it.)  materials intensity test apparatus is assort all kind of load equopemtn and assistant clamp.It can perform unconfined strength test, CBR test, Masher test, Rebound modulus test and firebolt intension test on materials of pavement and roadbed(pitch mixer、cement and calcareousness stabilization ) It can satisfy with pavement material Dynamic Load testing .

It’s main function have the figure result of testing、automatism counter、display data、print and drawing of the test result and automatism fix load peak vallue.

1、P1=50.00KN P2=200.00KN，P express pressure sensor.

2、Y=（Y1+Y2）/2=15.00mm show. electric displacement .

3、Electricity voltage：380AC±10%（Controller is 220AC±10%）

4、Work entironment：temperature 0~40℃、hunidity<85%℃、air pressure 86-106Kpa

5、Stabilization degree：±0.5%

6、Nicety：±1%

7、Load：+30%（Digital）limited long time overload.

8、Speed of show：5m'm/min、scan sampling 50mm/min

9、The manner of raise：stepless timing.
