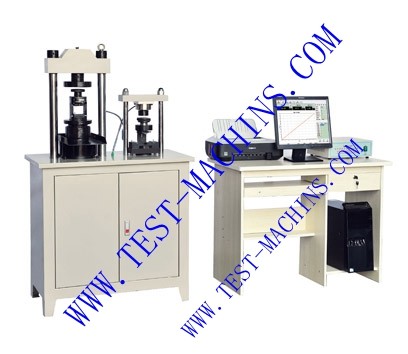

300KN Digital Cement Compression and Flexure Testing Machine

Functional use :

the Eletro-Hydraulic Pressure Testing Machine is mainly used for Compression strength test of cement and mortar,

Suitable to compression test in construction material with below 300kn strength material like concrete, tile .

This machine adopts hydraulic loading, electronic measuring, with load figures show that loading rates show that the maximum load to maintain, as well as overload protection, and power data retention and other functions.

Specificatios:

Maximum test force : 2000kN (compressive)

Testing force rang : 4% - 100% FS

Relative error: ≤ ± 1%

Hydraulic Pump Rated Pressure: 40MPa

Loading speed : 0.3Kn/s-10Kn /s

Rative error of loading speed: ± 5%

Bearing plates size: 260×300mm

Test space between up and down bearing plate : 320mm

Piston diameter and Max stroke φ130mm × 80mm

Motor power : 3 phase 0.75 kW

Packing information:

Plywood case packing material Dimensions : 850 × 500 × 1200mm (L × W × H)

Net weight : about 680Kg

Package No: 1
