  • graphite digestion instrument

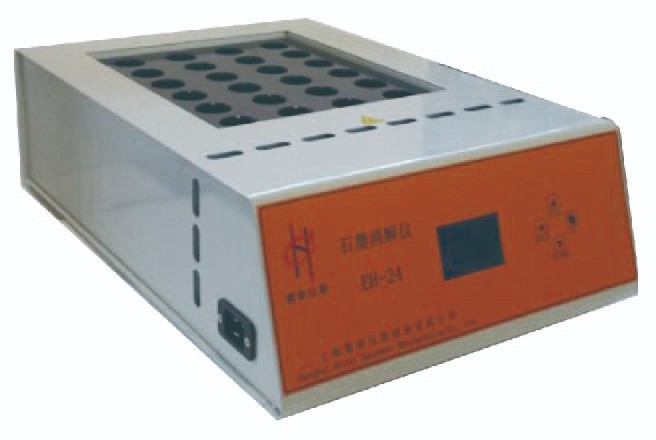

graphite digestion instrument

It is used for microwave sample pretreatment and acid removal in food, environment, chemical industry, medicine, biology and other fields. It is an ideal supporting equipment for AA, ICP-MS, ICP-AES and other instruments and imported microwave digestion.product characteristicsheating is uniform² heating body is made of high-density static pressure and high-purity graphite, which can ensure the temperature uniformity between each digestion hole and the temperature differ

technical parameters

Model

EH-24

EH-30

EH-24G

EH-30G

power supply voltage

AC220V 50HZ/10A

AC220V 50HZ/16A

Temperature control range

RT+5~210 ℃

RT+5~415 ℃

temperature control accuracy

± 1 ℃

power

2000W

3000W

sample number/depth

24 × 50mm

30 × 50mm

24 × 50mm

30 × 50mm

aperture size

Ф30.5mm

heating material

high purity graphite

Note: The performance parameter test is: ambient temperature under no-load condition, no strong magnetism and no vibration.20 ℃, ambient humidity50%RH.

The quantity and size of temperature control can be determined according to customer requirements.
