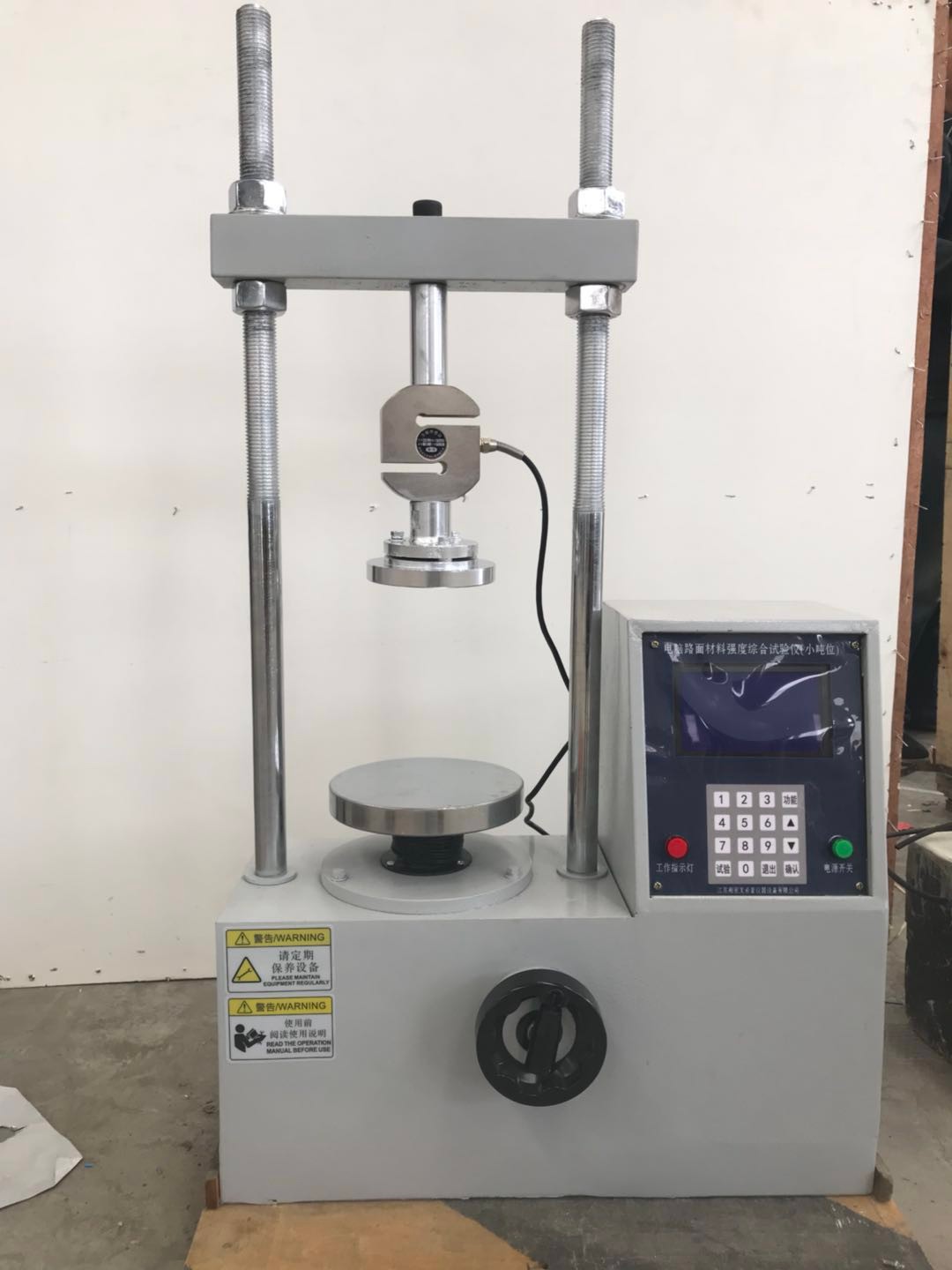

Digital Display CBR tester

The machine features a rigid two-column frame with upper cross-beam, which can be adjusted

in height and locked in position with locknuts. The driven force is provided by an linkage of

motor, worm and worm wheel housed in the base cabinet, which also accommodates the

motor and the electric panel. Can be operated both by motor and manual handle.

Specification：

1. Max. load: 3T capacity.

2. Test speed:  1.27 mm/min(ASTM/EN model)

3.Displacement :0-150mm

4 Work voltage:220V

5. Size of the penetration rod: Dia. 50×100mm

6. CBR mould diameter:152mm*170mm

Packing information:Main frame(mm): 560×450×1080 125kg

Controller(mm):570×490×330

Surcharge weights :￠151mm

Specification：

1. Max. load: 5T capacity.

2. Test speed: 1.27 mm/min(ASTM/EN model)

3.Displacement :0-150mm

4 Work voltage:220V

5. Size of the penetration rod: Dia. 50×100mm

6. CBR mould diameter:152mm*170mm
