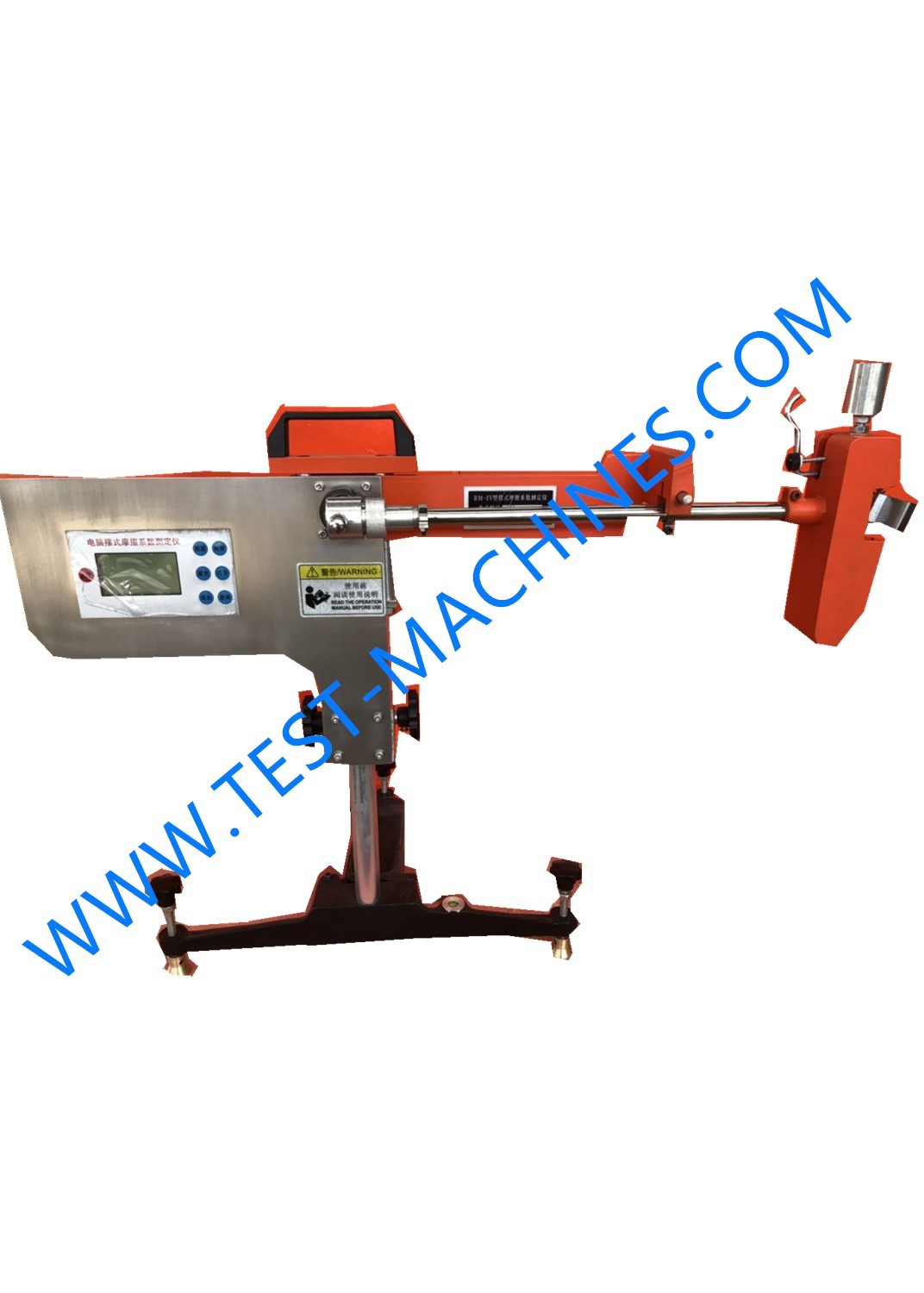

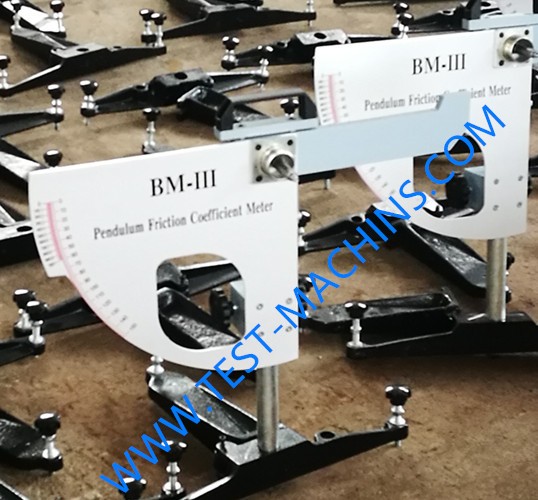

Digital Pendulum friction coefficient test apparatus

Product name：Digital Pendulum friction coefficient test apparatus

Item：HZC102

Details：

The pendulum tester is a shock apparatus with a dynamical force pendulum, it is made from the principle that the loss of potential theory is equal to the work done to overcoming friction on a road during the rubber fixing on the end of the pendulum slides across the road.

1. the torque of the pendulum：615.00g,

2. the weight of the pendulum is 1500±30g

3. the median point torque is 410±5mm

4. the positive static pressure from the rubber to the road::2263g

5. the number of swinging from the pendulum drops at a 5 degree angle till it stops：≥70

6. the distance between the peripheral of the rubber to the median point of the pendulum：508mm。

7. Acorn film specifications: 76.2 mm × 25.4 mm × 6.35 mm
