Mechanical CBR Machine

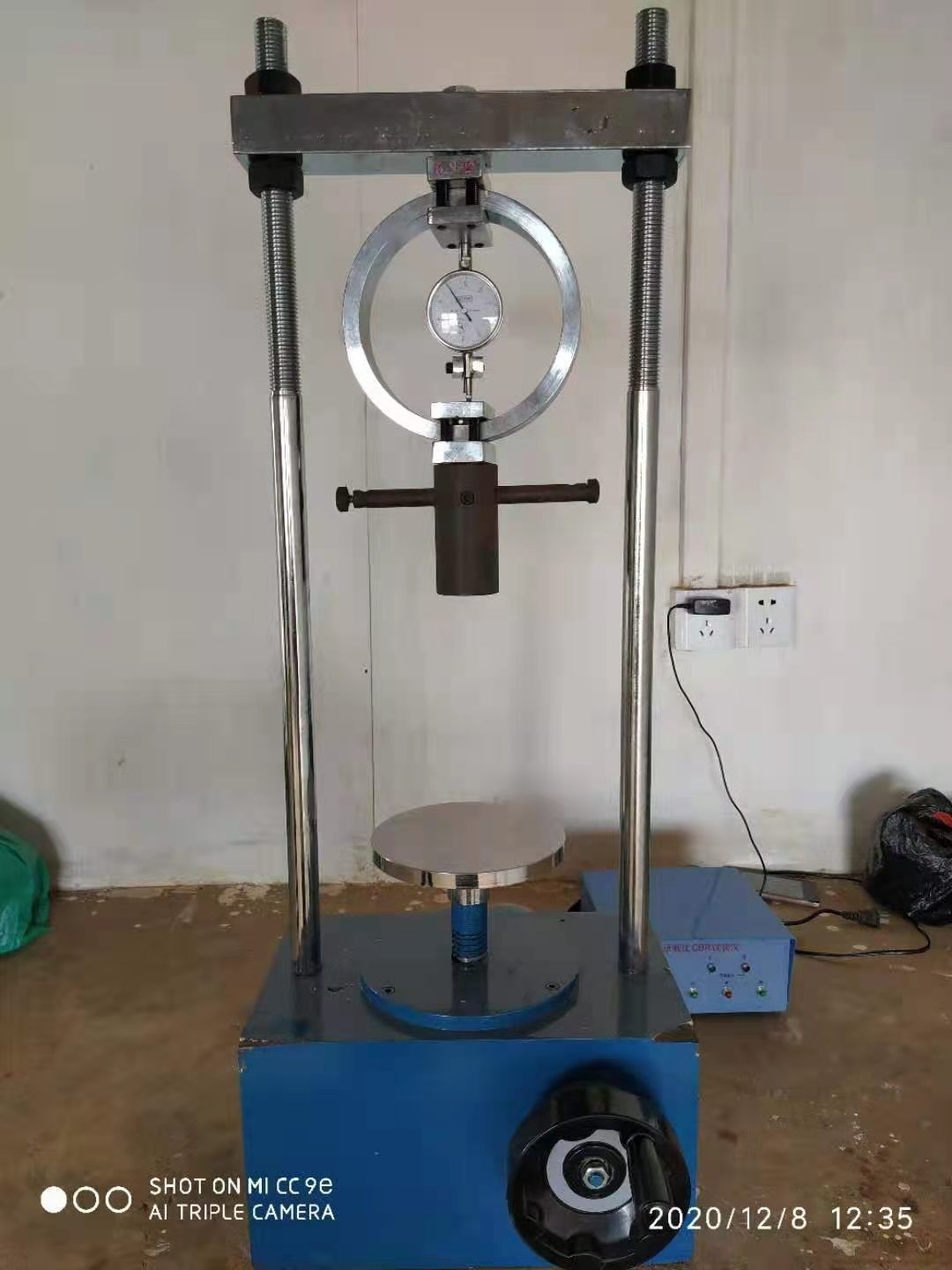

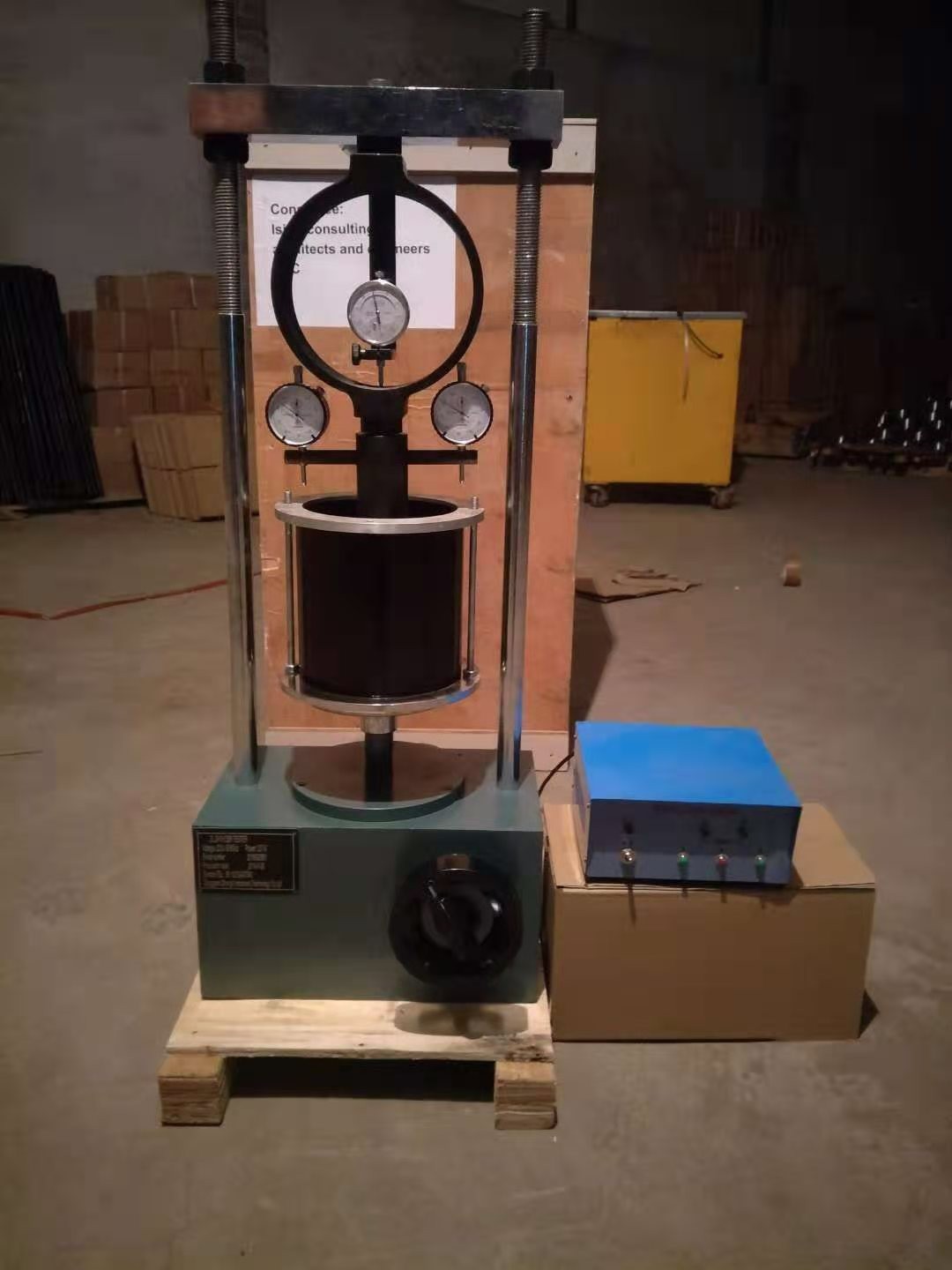

The machine features a rigid two-column frame with upper cross-beam, which can be adjusted in height and locked in position with locknuts. The driven force is provided by an linkage of motor, worm and worm wheel housed in the base cabinet, which also accommodates the motor and the electric panel. Can be operated both by motor and manual handle.

Specification：

1. Max. load: 30KN capacity.

2. Test speed: 1 mm/min (BS model) or 1.27 mm/min(ASTM/EN model)

3. Size of the penetration rod: Dia. 50×100mm

Packing information:Main frame(mm): 560×450×1080     125kg

Controller(mm):570×490×330
