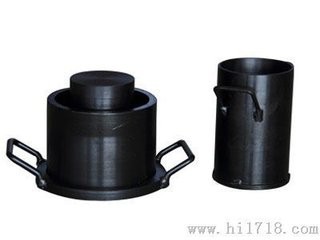

Aggregate Crushing Value tester

Aggregate Crushing Value Apparatus. Used to measures resistance of an aggregate to crushing under a gradually applied compressive load, vendors’ experts manufacture these apparatus by using optimum quality components and advanced technology in line with industry norms. Our quality examiners test these apparatus on varied quality measures so as to maintain their quality. Moreover, we offer these apparatus to our clients’ nominal prices.

Features:
Smooth finish Light weight Optimum testing efficiency

HZSS043-1 stone  Crushing Value Apparatus Specifications:

Confirming standard	JTGE42-2005 for Test of Aggregate inRoad Project
Body size	Dia: 75mm×125mm height
Dia of prong	Dia: 149mm
Material	Fine Grade Steel
Complete set	Body cylinder,  Prong , base plate  Tampering rod
Packing Details
DimenS	350×350×300mm
Gross /Net Weight	25KG / 17KG

HZSS043-2 stone  Crushing Value Apparatus  and  Calibration tank
HZSS043-3 sand Crushing Value Apparatus
HZSS043-4sand &stone  Crushing Value Apparatus
HZSS043-5stone  Crushing Value Apparatus &Flakiness / Thickness Gauge
