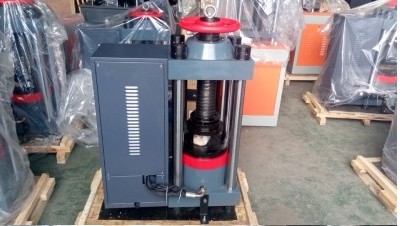

2000KN Digital Concrete Compression Testing Machine

Introduction:

Compression testing machine (digital, computerized etc. )

YES-2000 compression testing machine is mainly used to various materials compression test. Such as cement, concrete, brick of diverse materials, rubber tray, concrete component, metal component anti-compress strength.

1, High performance load frame, with high stiffness and stability;

2, Hydraulic loading, wide speed adjusting range;

3, Digital display testing load, speed, peak value etc;

4, With overload, over voltage, over current protection function;

5, YES-2000 is manual screw to adjust test space, YES-2000A is motor to adjust test space.

Specification:

Model YES-2000 YES-2000A

Max. load 2000KN 2000KN

Accuracy of testing force ± 1% of indicated value

Upper compression platen dia. Φ 225mm

Lower compression platen dia. Φ 300mm

Distance between two platens 320mm

Compression platen dia. φ 250mm

Piston stroke 30mm

Power supply 380V± 10%, 50Hz, 3 phase

Dimension 800× 500× 1200

Weight 750Kg

Standard Accessories Loadframe, oil pressure sensor, digital meter, compression platen, manual

Our Services

Lifelong after sales service & maintenance;

Response within 24 hours for any problem;

Overseas training, installation is avaliable.
