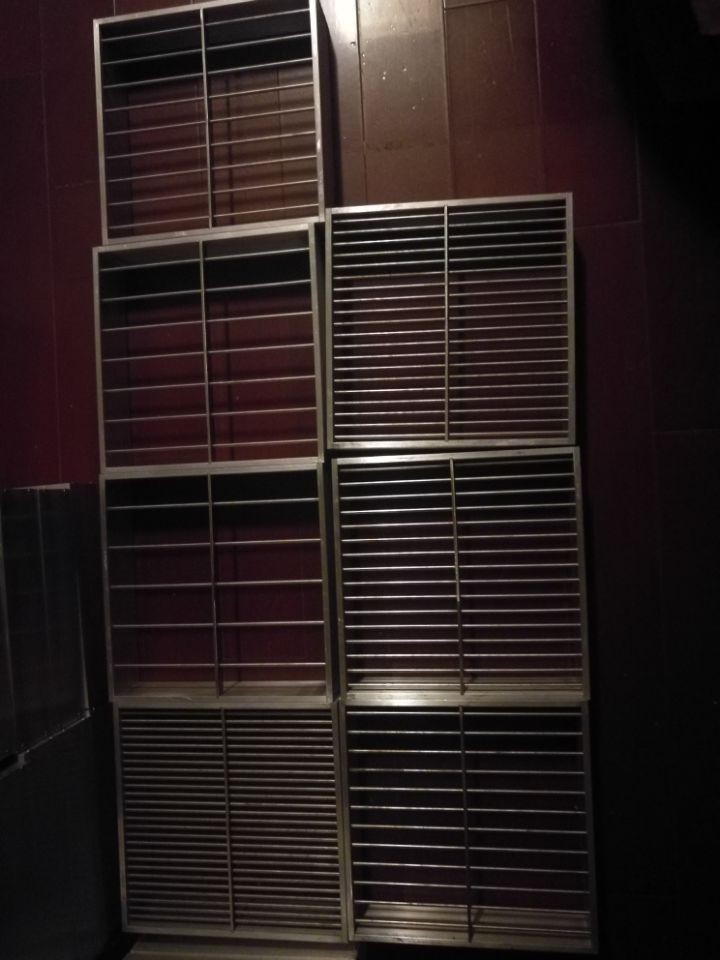

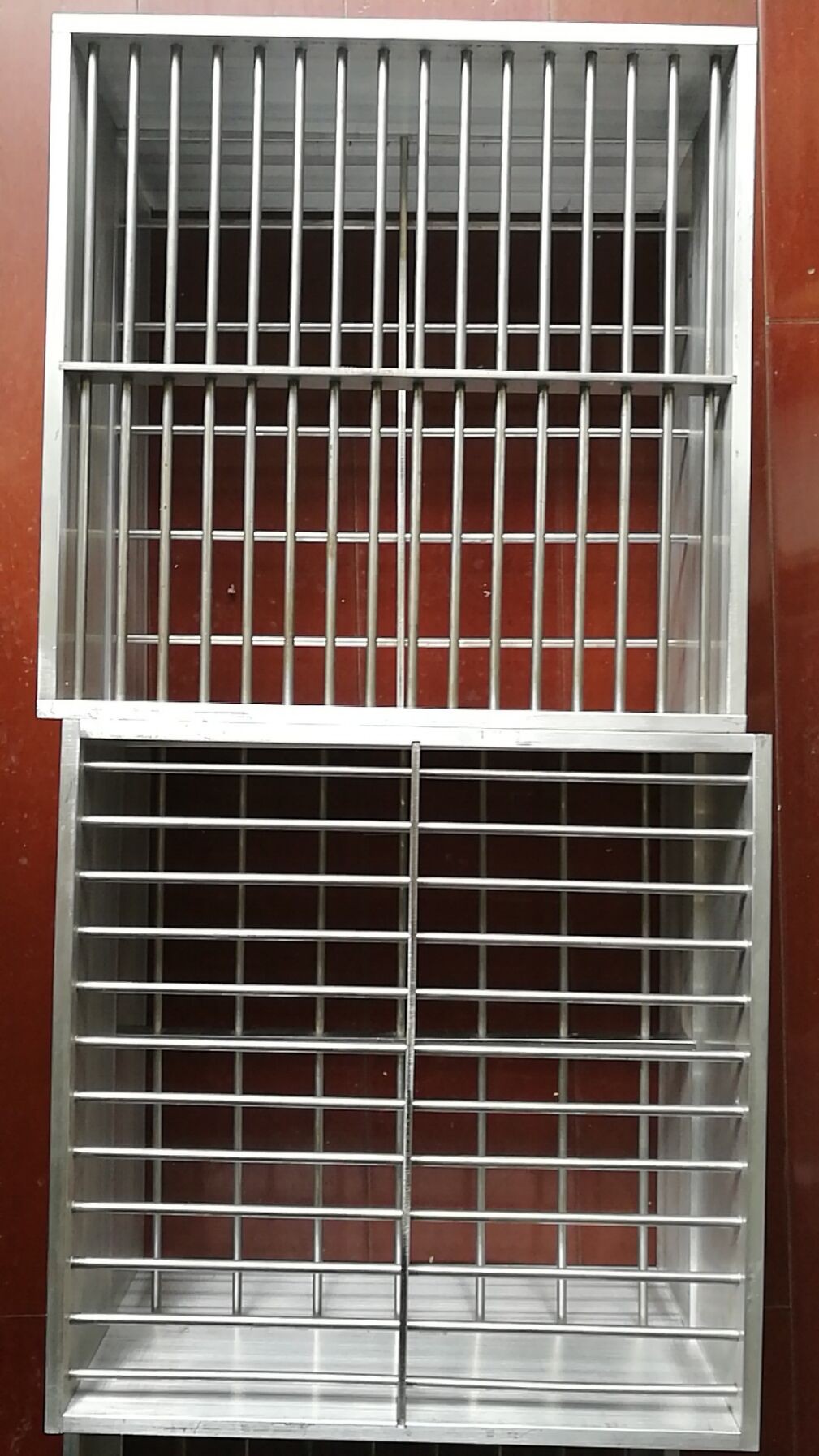

Grid Sieves

Product name：Grid Sieves

Item：HZSS040-1&HZSS040-14

Details：

Standard: Confirming to EN933-3:1997 NF P18-561 UNI8520-I8

Grid sieves are used for the determination of particle shape, flakiness index of aggregates.

Made from stainless steel with outer dimensions of 300 x 300 x 75 mm. The cylindric rod bars with 5.0 mm diameter are arranged parallel. Machinized polished treatment

Feature: Light structure, solid and corrosion-resistant , long life.

Main technical parameters:

1. Model: HZSS040 Kit

2. Dimensions: 300x300x75 mm

3. Slot width : From 2.50-40 mm

4. Dia of material : 16mm-12.5mm

5. Net weight: 2.5 kg

Application:

Size : 300×300mm, Grid with 5mm diameter are fixed on metal frame

Made from stainless steel , light structure, solid and corrosion-resistant , Long life .

Optional Sizes:
