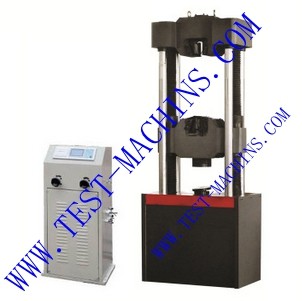

High Quality600KN Digital Display Hydraulic Universal Testing Machine

Functional use

The Compression Testing Machine is mainly used for doing compressive test of some construction materials like brick, stone, cement and other building materials concrete

Features:

Hydraulic load, Electronic measuring,

Display load value and loading rates

Keep Max load and overload protection,

Power data retention and other functions.

Specifications :

Maximum Test Force : 600kN

Test Force showed the value of the relative error: <± 1%

Screw adjustment method : electrical power

The upper and lower platen size : 160 mm;

Maximum distance between the upper and lower platen; 500mm(stretch space 500mm);

Maximum compression space:380mm

clamping way:Manual/automatic tightening

round sample clamping diameter :Φ13-40mm

The specimen thickness of clamping     0-15 mm

Flat specimen  width of clanping :75 mm

The shear specimen diameter  :10 mm

The maximum distance between bend protection  :450 mm

Stretch space two pillar distance  :

The oil pump motor power :1.1 kW

Move the motor power  :0.75 kW

The main machine size:720 * 580 * 580

The net weight:   2100 kg
