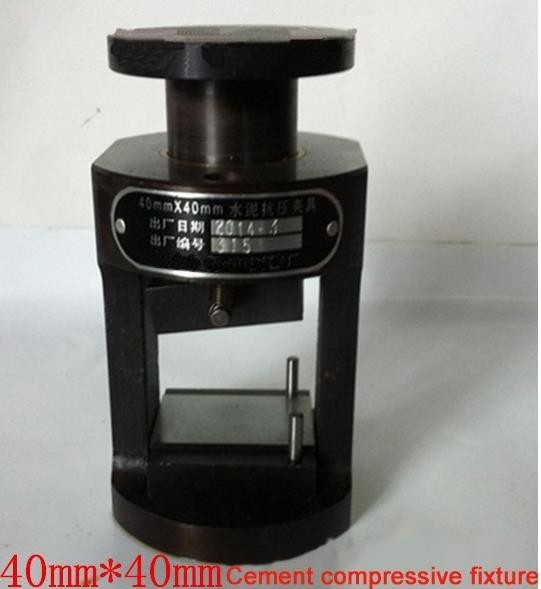

40*40mm Cement Compression Test Fixture

Item：HZC010

Details：

Cement Compression Testing Machine 40*40mm Cement Compression Test Fixture

Product Description

Standard: JC/T683,GB/T17671.

In order to ensure the quality of resist-compression fixture,our country has established the industrial

standard for the cement resist-compression fixture JC/T683-2005,which has established strict regulation

on the technical requirements of the cement resist-compression fixture. According to the regulation,our

company has made efforts to improve and research for two years,and cooperated with physical room of

national building material institution.Our company has finally developed the resist-compression fixture to

measure to strength of the cement mortar which is in accordance with industrial standard of JC/T683-2005

and suitable for the measuring method for the strength of cement mortar in GB/T17671-1999.

Main Technical Parameters

(1) positioning pin

Hardness: ≥ 55HRC; distance: 41~55mm;

(2) the inside of the positioning pin to the center of the lower pressing plate: 20mm;

(3) the center of the bottom frame positioning hole: Φ8mm ± 0.1mm, depth: 9mm;

(4) the pressure column of center hole: process with 8mm ±0.1mm, depth: 9mm;

(5) the inside connection pin and the lower pressing verticality of the center line two: < 0.06mm;

(6) fixture size: Φ 115 * 161mm;

(7) pressure column hardness: ≥55HRC;

(8) fixture total weight: 5kg;

(9) the upper and lower plate length coincidence degree: ≤0.2mm;

(10) the upper and lower pressure plate width: 40 ±0.05mm;

(11) the length of the upper and lower press plates: > 40mm;

(12) upper and lower pressure plate free distance: > 45mm;

(13) the upper and lower pressure plate flatness: 0.01mm;

(14) the hardness of upper and lower pressure plate: HRC58-60;

(15) the upper and lower pressure surface roughness: ≥Ra0.8;

(16) pressure column with the central axis of the upper platen and lower platen center center

coaxiality: ≤0.2mm;
