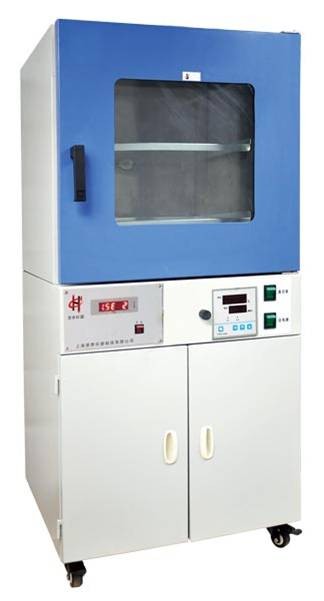

HTZ series vacuum drying oven-vacuum degree digital display and control

1. Overview

and biochemistry, chemical and pharmaceutical, medical and health, agricultural scientific research, environmental protection and other research and application fields for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for fast and efficient drying of dry heat-sensitive, easy-to-decompose, easy-to-oxidize substances and complex components.

2, advantages of vacuum drying technology:

the vacuum environment greatly reduces the boiling point of the liquid to be expelled, vacuum drying can be easily applied to heat-sensitive substances;

For samples that are not easy to dry, such as powder or granular samples, the vacuum drying method can effectively shorten the drying time;

All kinds of complicated mechanical parts or other porous samples are cleaned and dried by vacuum, leaving no participating substances after complete drying;

is safer to use― ―under vacuum or inert conditions, completely eliminate the possibility of oxide explosion when exposed to heat;

Compared with ordinary drying that relies on air circulation, powdered samples will not be blown or moved by flowing air.

3, product characteristics

nvacuum control

digital display vacuum gauge automatically controls the vacuum degree,provides you with more accurate and effective vacuum control. The vacuum degree can be easily controlled through the panel, and the vacuum degree can be easily controlled1.0 × 101.0 × 105(Pa)-1range, the control accuracy is ±1%. The vacuum gauge uses a resistive silicon tube pressure sensor to ensure a stable pressure value and provide you with more accurate and effective vacuum control

nheating element is located on the partition inside the box. Compared with the traditional vacuum drying oven, the heating time is shortened50%.

naluminum shelf stamped by special process has high temperature, no oxidation and fast heat conduction. Minimize heat loss

ncuboid studio to maximize the effective volume, microcomputer temperature controller, accurate and reliable temperature control.

ntempered, bulletproof double-layer glass door to observe the objects in the working room, it is clear at a glance, and can fill the interior with inert gas.

nbox door closing tightness can be adjusted by the user at will. The integrally formed silicone rubber door sealing ring ensures high vacuum in the box.

nworking room is made of stainless steel plate, the box shell is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed with plastic.

nstorage, heating, testing and drying are all carried out in an environment without oxygen or filled with inert gas and will not cause oxidation.
