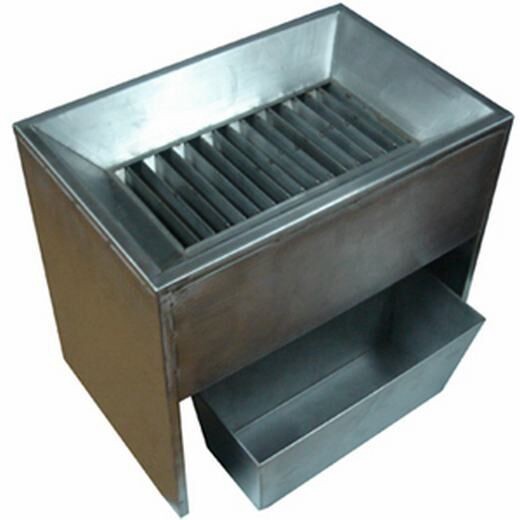

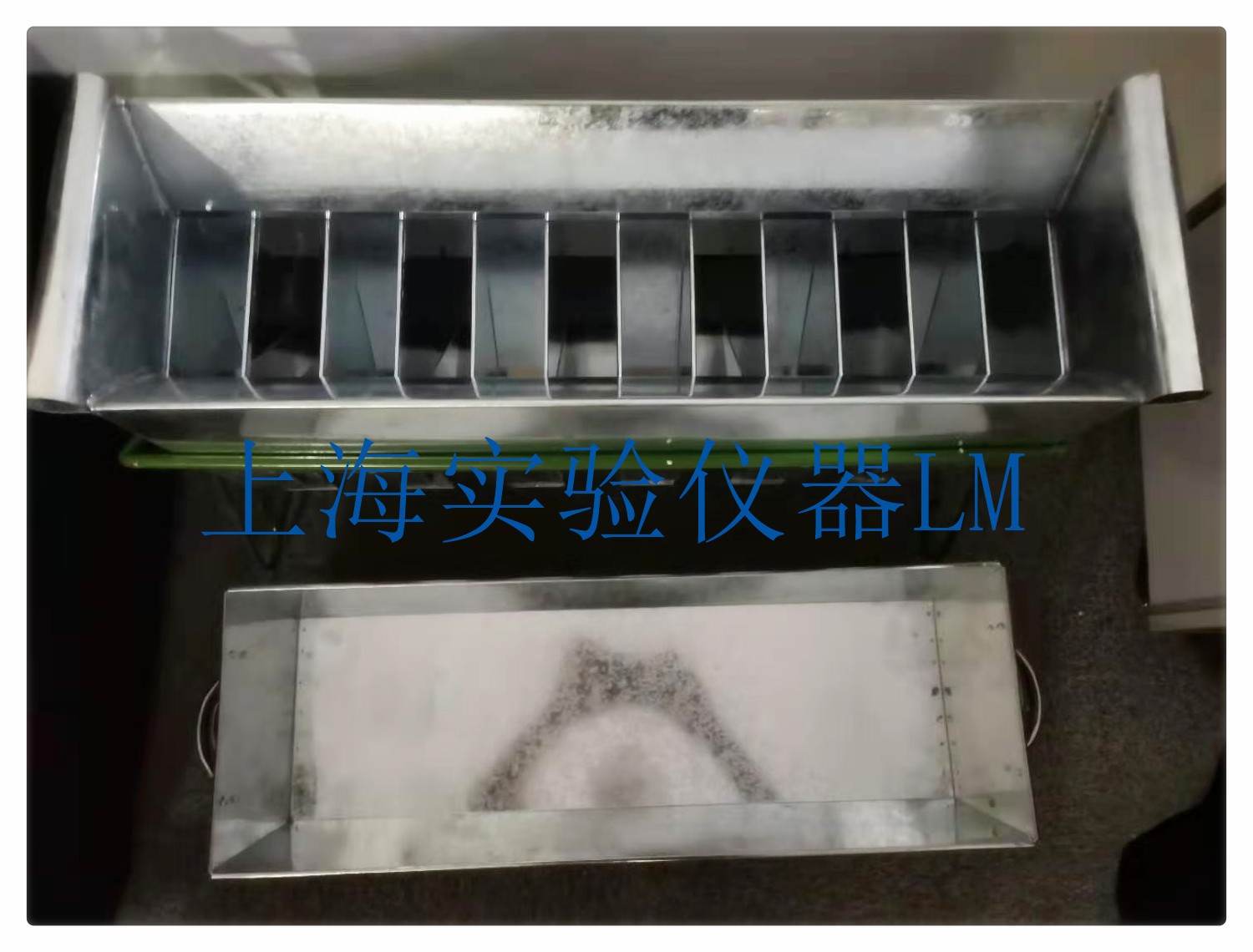

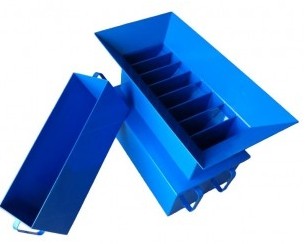

Sample Splitter ( Riffle Box )

Constructed from stainless steel material , with 3 sample receivers, to used for the precision division into two representive portions os materials such aggregate, sand , gravel and similar material

Application:
Use: Aggregate sampling To divide aggregates into a representative sample increment for testing.
Standard: BS 1377-2 (1990), BS815:1 ; EN 933-3; ASTM C136 UNI8520

Specification:
Capacity ranges from 0.24 to 11.3 dm3
The sizes range from 7 mm to 64 mm slot widths.
Slots range from 12 to 8

Model	Material	Slot Width		Max Size of Sample	Slot Number	Weight	Spare Collect Pan
HZSS028	Stainless		5	3.8	12	0.5	02
HZSS029	Stainless	1-4”	6.3	5	12	0.8	02
HZSS030	Stainless	1-2”	12.7	10	12	1.2	02
HZSS031	Painted		15	12.5	12	1.5	02
HZSS032		3-4”	19	13	12	1.5	02
HZSS033		1”	25.4	20	12	11	02
HZSS034		1  1-2”	30	23.5	8	11	02
HZSS035			32	24	8	11	02
HZSS036			38	25	8	12	02
HZSS037		2”	50.8	40	8	13	02
HZSS038		2  1-2”	63.5	50	8	18	02
