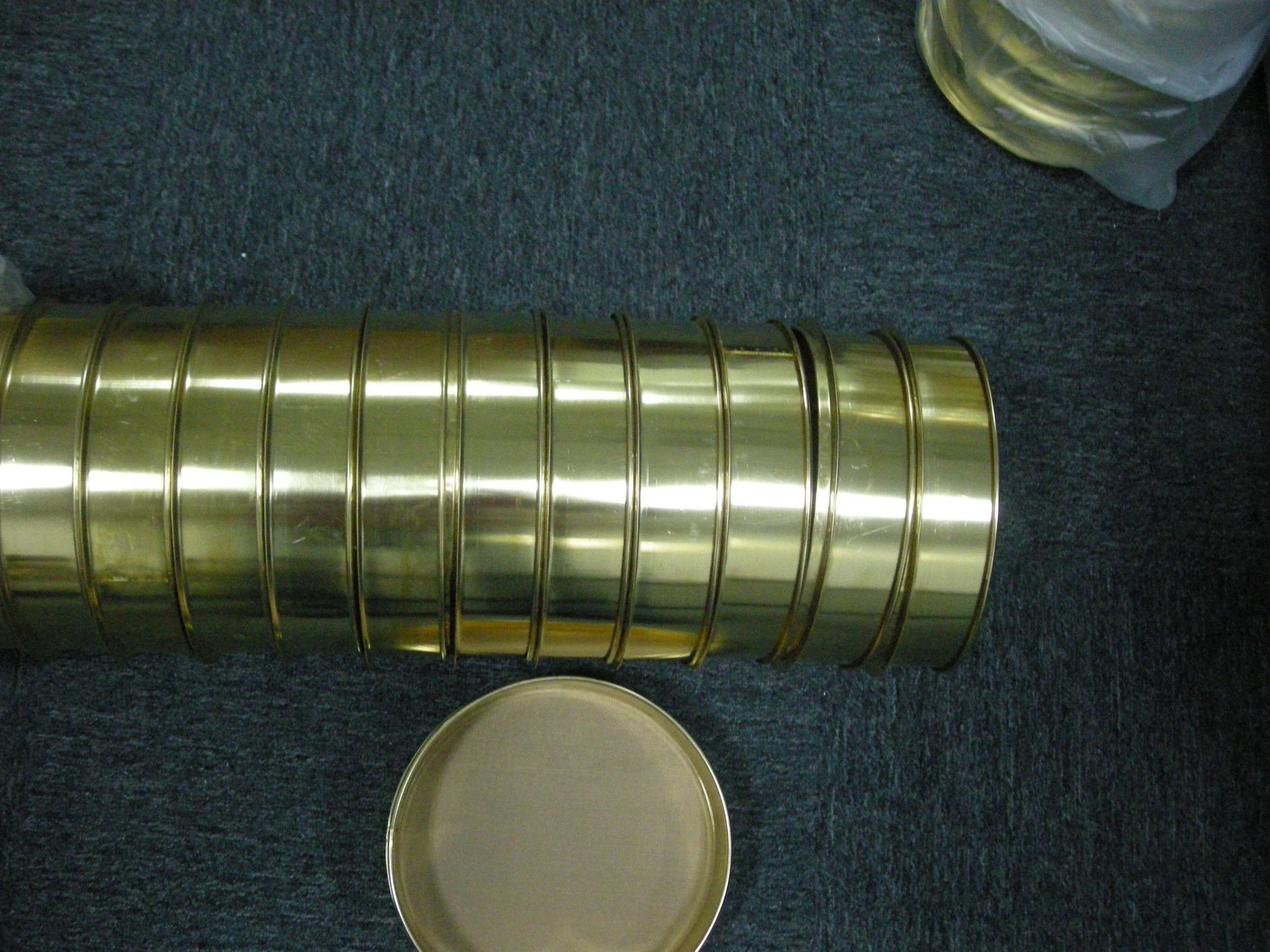

Brass Sieve

Product name：Brass Sieve

Item：HZSS041-1-HZSS041-10B

Description:

Meeting : ISO 3310-2, ASTM E 11, AASTHO T27  EN 933-1 . EN933-2

Sieve Frame and Mesh are from brass material ,

Dia: 8 inch (200mm ),  full Height 50mm ,

PRODUCTION NO    Aperture  MM               Dia cm *Height

Material

HZSS041-1         40              Dia20*5cm

Full Brass

HZSS041-2                  20                  Dia20*5cm

Full Brass

HZSS041-3                 10                   Dia20*5cm

HZSS041-4                5                       Dia20*5cm

HZSS041-5                 2                      Dia20*5cm

HZSS041-6               1                        Dia20*5cm

HZSS041-7                0.5                    Dia20*5cm

HZSS041-8               0.25                   Dia20*5cm

HZSS041-9           0.075                      Dia20*5cm

HZSS041-10      COVER AND LED          Dia20*5cm

HZSS041-1A        40                            Dia20*5cm

Brass frame galvanized plate Screen

HZSS041-2A             20                    Dia20*5cm

HZSS041-3A             10                     Dia20*5cm

HZSS041-4A                   5 Dia20*5cm

HZSS041-5A                  2                Dia20*5cm

HZSS041-6A                  1                   Dia20*5cm

HZSS041-7A                   0.5                  Dia20*5cm

HZSS041-8A                  0.25                 Dia20*5cm

HZSS041-9A                 0.075                 Dia20*5cm

HZSS041-10            COVER AND LED          Dia20*5cm

Full Brass

HZSS041-1B           40                  Dia20*5cm

Brass frame Stainless Steel Screen

HZSS041-2B            20                Dia20*5cm

HZSS041-3B            10                Dia20*5cm

HZSS041-4B             5                 Dia20*5cm

HZSS041-5B             2                  Dia20*5cm

HZSS041-6B             1                Dia20*5cm

HZSS041-7B          0.5                 Dia20*5cm

HZSS041-8B          0.25               Dia20*5cm

HZSS041-9B        0.075               Dia20*5cm

HZSS041-10    COVER AND LED   Dia20*5cm

Full Brass

if USA Standard Sieve, Plain Weave, 304 Stainless Steel Screen Material, Brass Frame Material, ASTM E11 & AASHTO M92 Standards CAN MAKE BUT THE BDELIVERY DAY IS 20- 30 days

we are offering a wide range of Test Sieves for Coarse Aggregate. Smooth textured and easily used for lab testing purpose, offered sieves are widely appreciated in the market for its various quality features. The provided sieves are manufactured by our vendors’ experts by using the best quality raw material and progressive technology in line with industry norms.

Features:

Round shapeFine finishSturdy built

Specifications:

Essa maintains substantial stocks of our own privately labeled test sieves to ISO 3310, ASTM and BS 410 specifications. They are manufactured under a quality controlled management system accredited by a leading assessment body. A certificate of compliance is supplied with every sieve

Commonly stocked sieve sizes are: 100 mm (diameter) x 40 mm (high); 200 mm x 50 mm; 300 mm x 75 mm; and 450 mm x 100 mm

Also available upon request are half height sieves: 100 mm x 20 mm; 200 mm x 25 mm; 300 mm x 40 mm; and 12"/305 mm x 40 mm

Other sizes include: 150 mm x 38 mm; 12"/305 mm x 75 mm; 315 mm x 75 mm; 400 mm x 65 mm; 8” x 1”; and 8” x 2”

ISO 3310/1 sieves have stainless steel frames and wire mesh

ISO 3310/2 have stainless steel frames and mild steel perforated plate (except 200 mm has stainless steel plate)

Other Details:

Sturdy Rim: strong - easy to handle

Exact Frame: rugged - uniform - positive nesting

Fillet: no sample trapped between mesh and frame

Ergonomically Designed: no raw edges – comfortable to handle

Evenly Tensioned Mesh: precise and accurate results

No Cavities: totally sealed frame – no crevices to trap sample

Precision Mesh: high-tech optical equipment accurately measures apertures

High Quality Stainless Steel Mesh and Frame: minimal corrosion – long lasting
